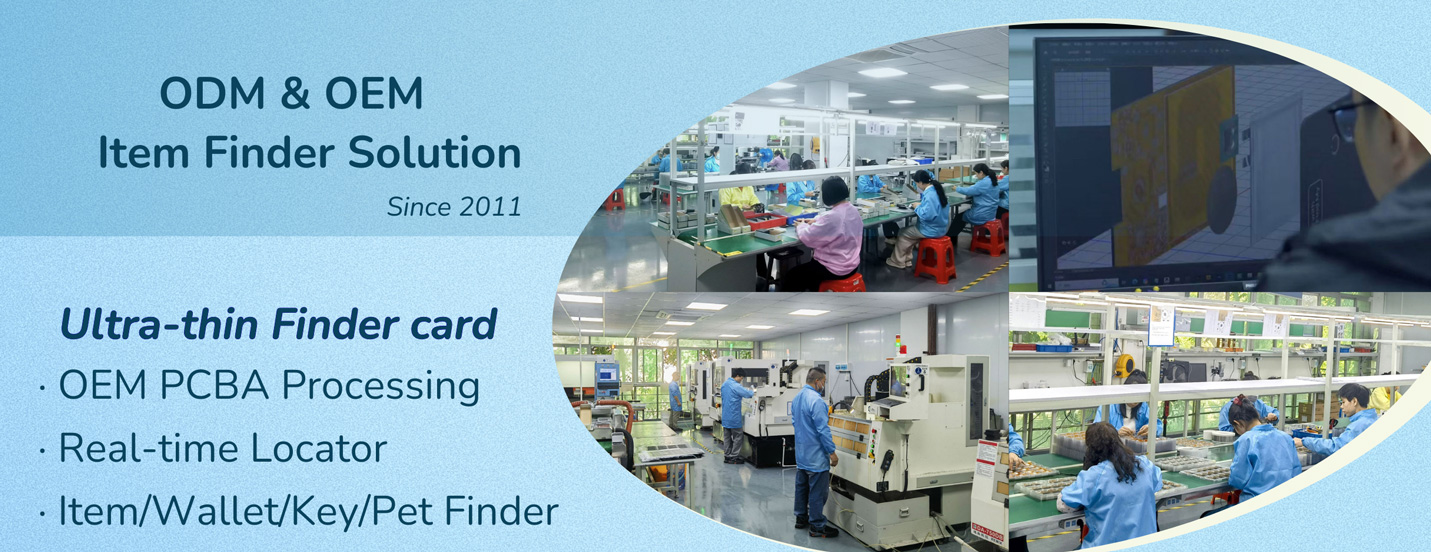

We provide comprehensive OEM/ODM solutions for PATRISARD tracker card, combining cutting-edge customization capabilities with patented cold-press technology to deliver superior tracking products that meet your exact specifications.

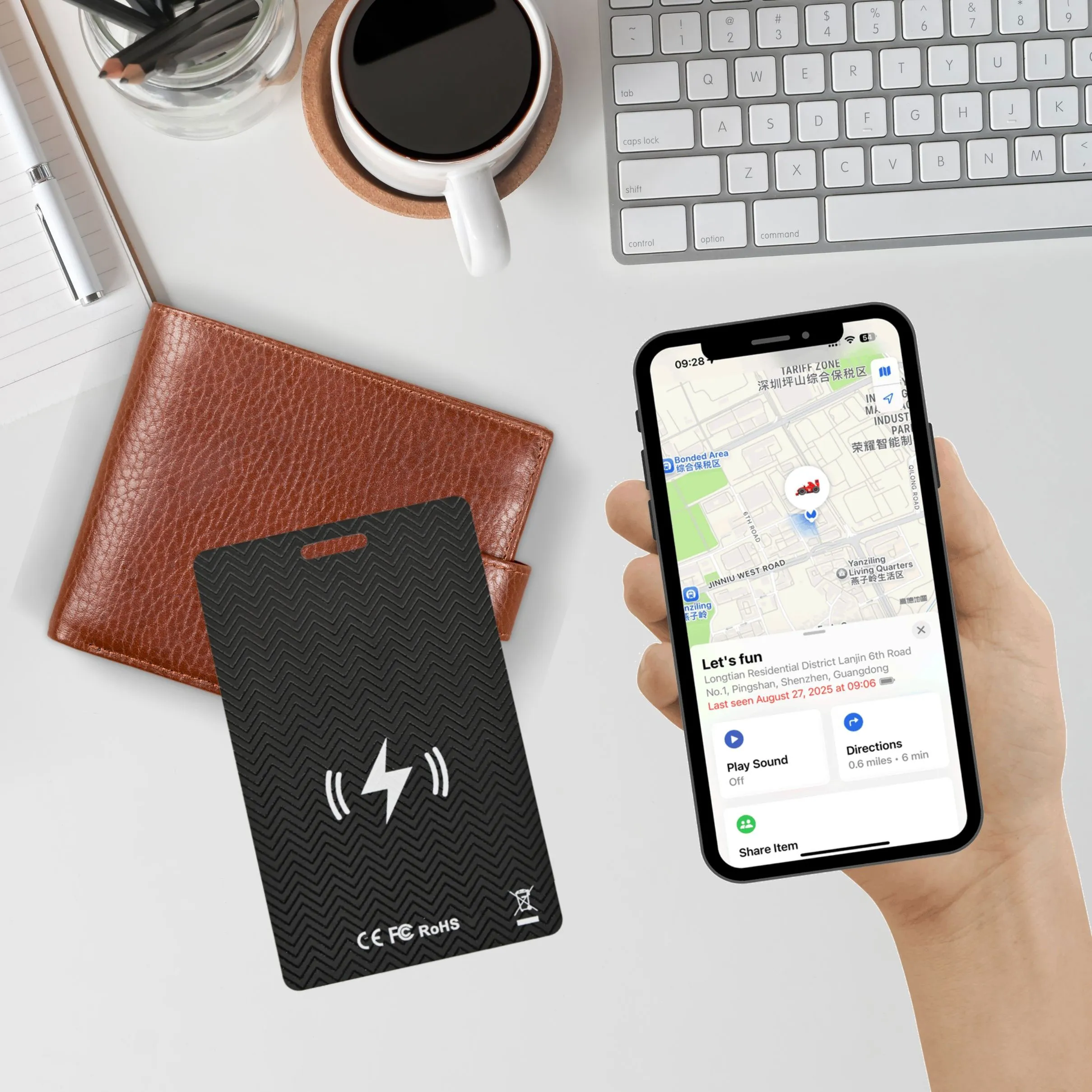

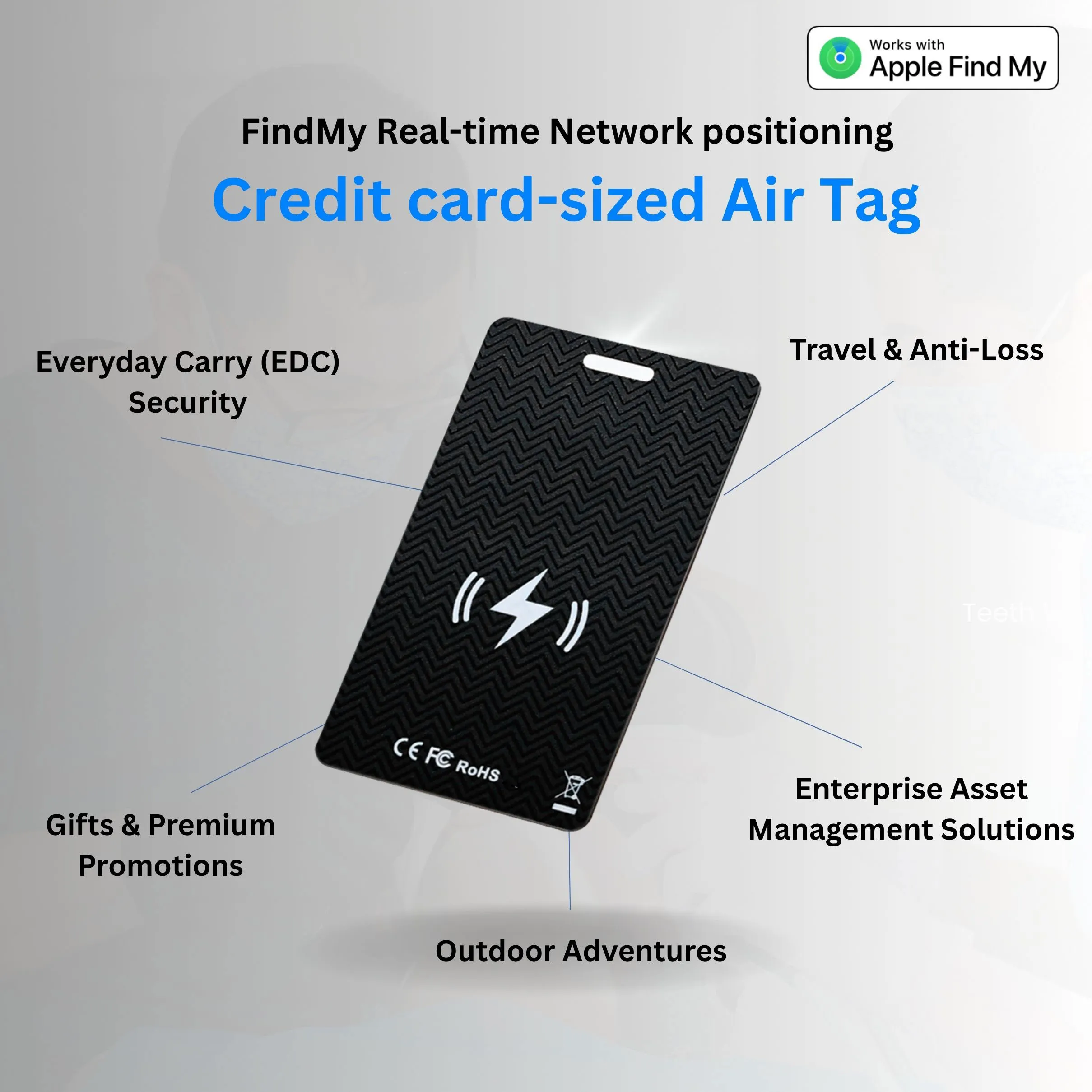

Such products are suitable for tracking and locating items including wallets, backpacks, luggage, vehicles and more.
Main features and benefits:
✅ Ultra-thin and flexible - less than 2 mm thick
✅ Customizable integration - supports BLE, NFC, RFID, LED, sensors and embedded ICs (such as payment chips).
✅ Cost-effective production - no high temperature or high pressure curing required
✅ Zero mold cost - no expensive injection molds are required, no minimum order quantity (MOQ) requirements.
✅ Fast delivery - from design to mass production in just a few days, helping you seize market opportunities.

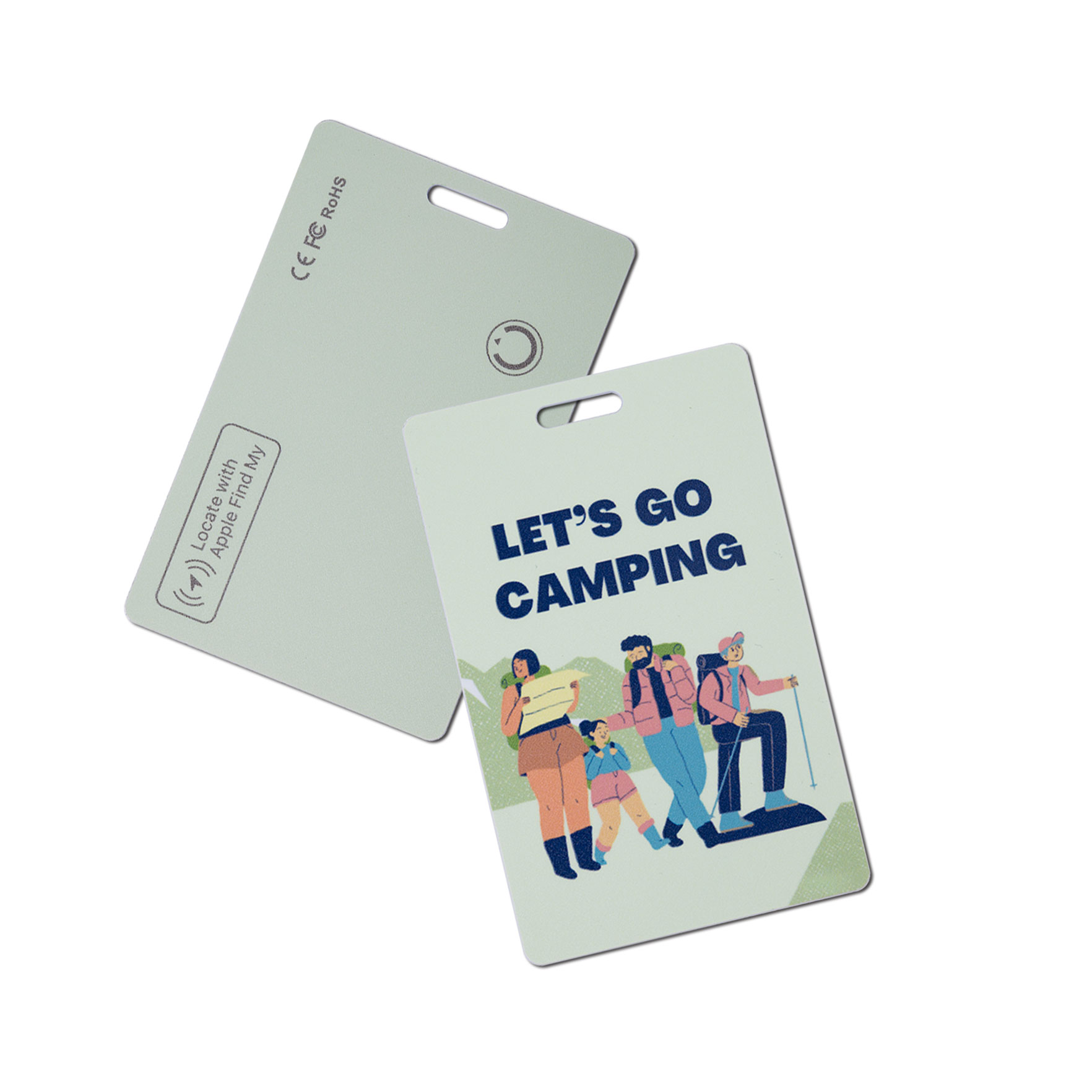

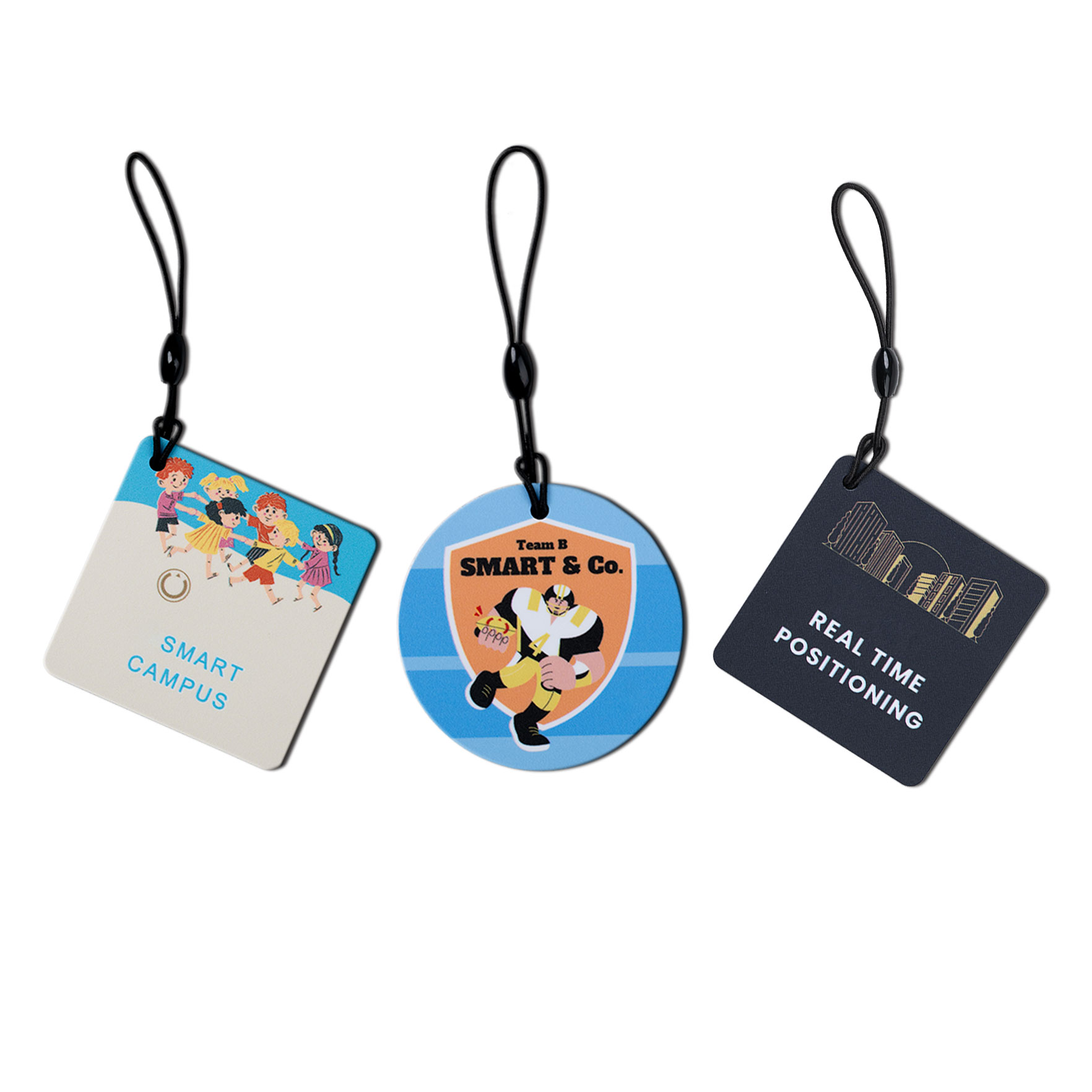

✅ Fully customized - support any shape, size or printing design to meet brand promotion or creative needs.
✅ Ultra Portable - Credit card size or custom size, easily fits in wallet/card holder.
| Process characteristics | |
| Low temperature operation: | Avoid high temperature damage to chips and materials. |
| High precision: | Ensure accurate alignment and firm bonding between chips and substrates. |
| Environmental protection: | Reduce energy consumption and harmful emissions. |
| Flexibility: | Suitable for a variety of materials and design requirements. |
| Improve yield: | Reduce defective products in production. |
| Extend life: | Enhance the durability of smart cards. |
| Lightweight finished products: | Usually similar to traditional bank cards, thin and light and easy to carry |
Brand | Patrisard |

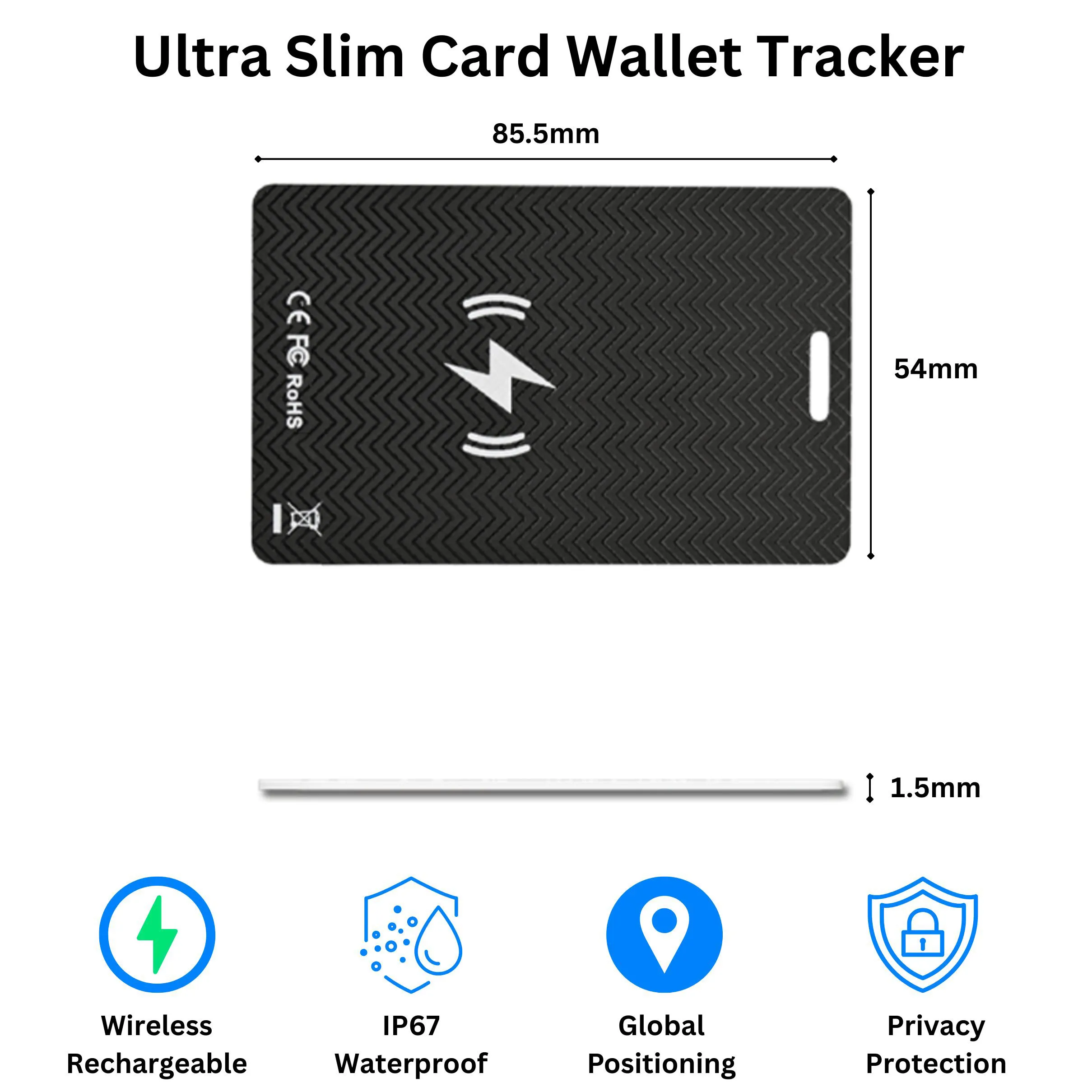

Dimensions | 85.6 x 54 x 1.8 mm |

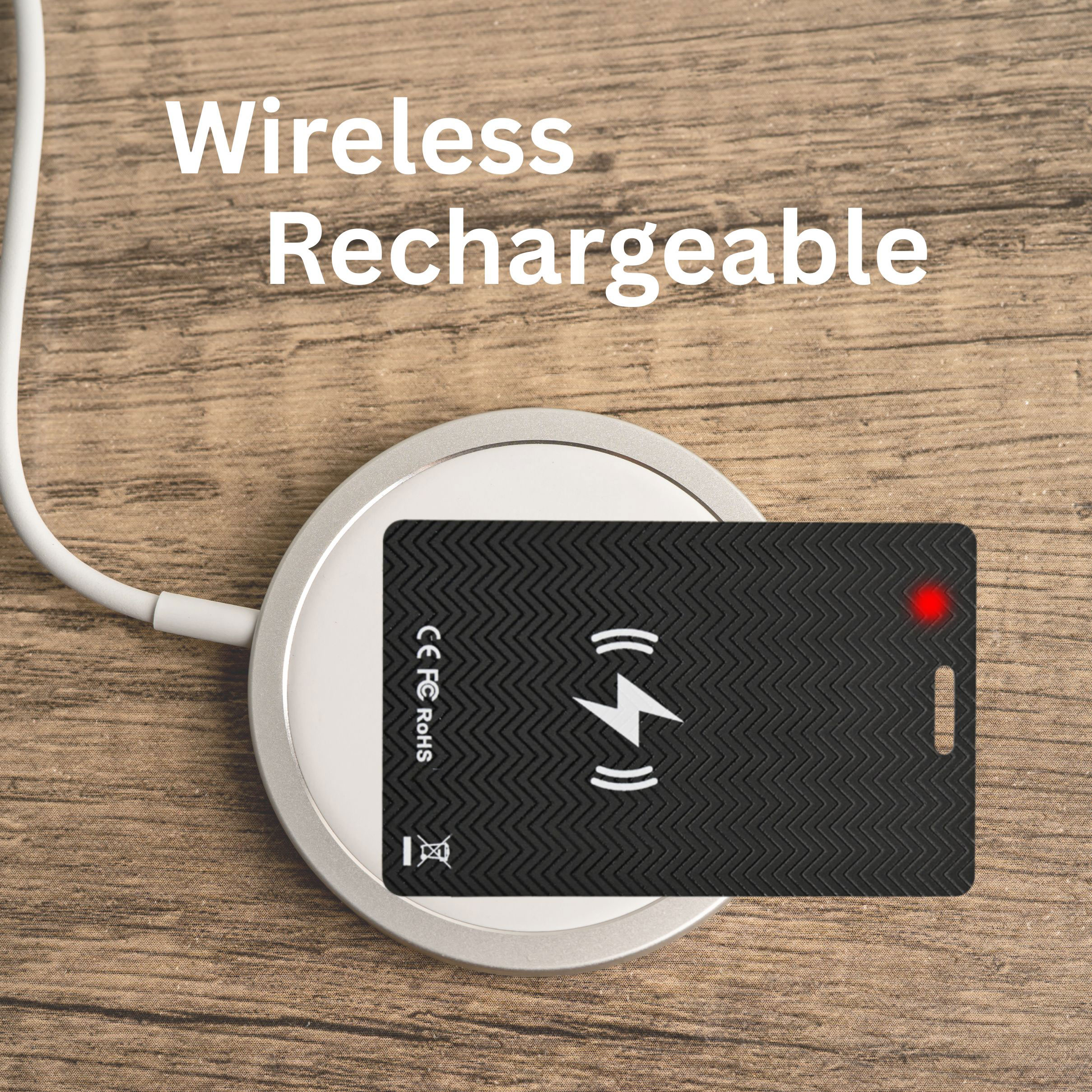

Charging Method | Wireless charging |
Weight | 10-15g |
Battery Voltage | 3.7V |
Nominal Capacity | 155mAh |
Average Operating Current | 20uA |
Charging Time | 1.5~2 hours |
Charging Current | ≦100mA |
Lifespan | ≥300 charge cycles |
Continuous Operating Time | 4 months (per charge) |
Standby Time | >1 year |
Power-off Voltage | 2.8V |
Sound Level | 75-80 dB (10cm) |
Wireless Charging Protocol Standard | WPC, latest Qi standard V1.2 |
Wireless Charging Frequency | 127kHz (center frequency) |
Transmit Power | -45 ~10dBm |
Receiver Sensitivity | -96dBm |
